What Is Moment–Curvature Analysis? The moment–curvature relationship describes how a reinforced concrete section deforms under bending. As an increasing curvature is imposed on the section, the internal forces carried by the concrete and the reinforcement produce a bending moment. Plotting this moment against the curvature gives the moment–curvature curve, also called the moment–curvature diagram. The curve captures the complete behaviour of the section in a single line: from the elastic range through cracking and yielding of the reinforcement, up to the ultimate state. Moment–curvature analysis is one of the cornerstones of displacement-based assessment and design in earthquake engineering. Knowing how much moment a column or beam can carry is not enough on its own; how much the section can deform while carrying that moment — in other words, how ductile…
Read More
Confined and Unconfined Mander Concrete Model

Confined and Unconfined Mander Concrete Model

Genel

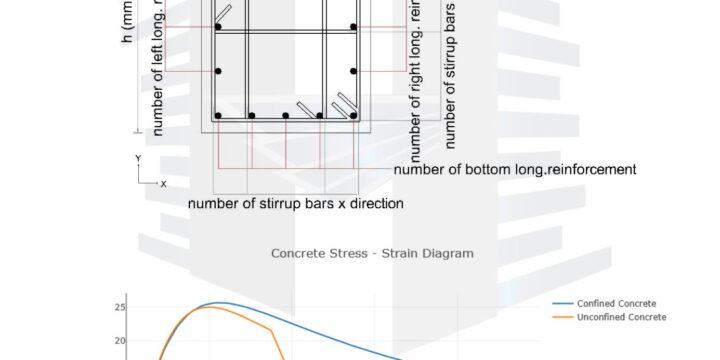

  Reinforced Concrete Stress-Strain Diagram Section Width [mm] Section Height [mm] Concrete Cover [mm] Stirrup Diameter [mm] Concrete Strength fco [MPa] Stirrup Spacing [mm] Stirrup Yield Strength fyw [MPa] Stirrups Count in X Direction Stirrups Count in Y Direction Top Rebar Diameter [mm] Top Rebar Count Bottom Rebar Diameter [mm] Bottom Rebar Count Left Rebar Diameter [mm] Left Rebar Count Right Rebar Diameter [mm] Right Rebar Count Calculate and Plot Download Data (CSV) You can obtain the stress–strain diagram of confined and unconfined concrete sections based on the Mander concrete model by defining the section properties using the program above. Additionally, you can download the corresponding stress and strain values for the defined section to your computer in CSV (Excel) format. The ultimate compressive strain (εcu) for confined concrete is…
